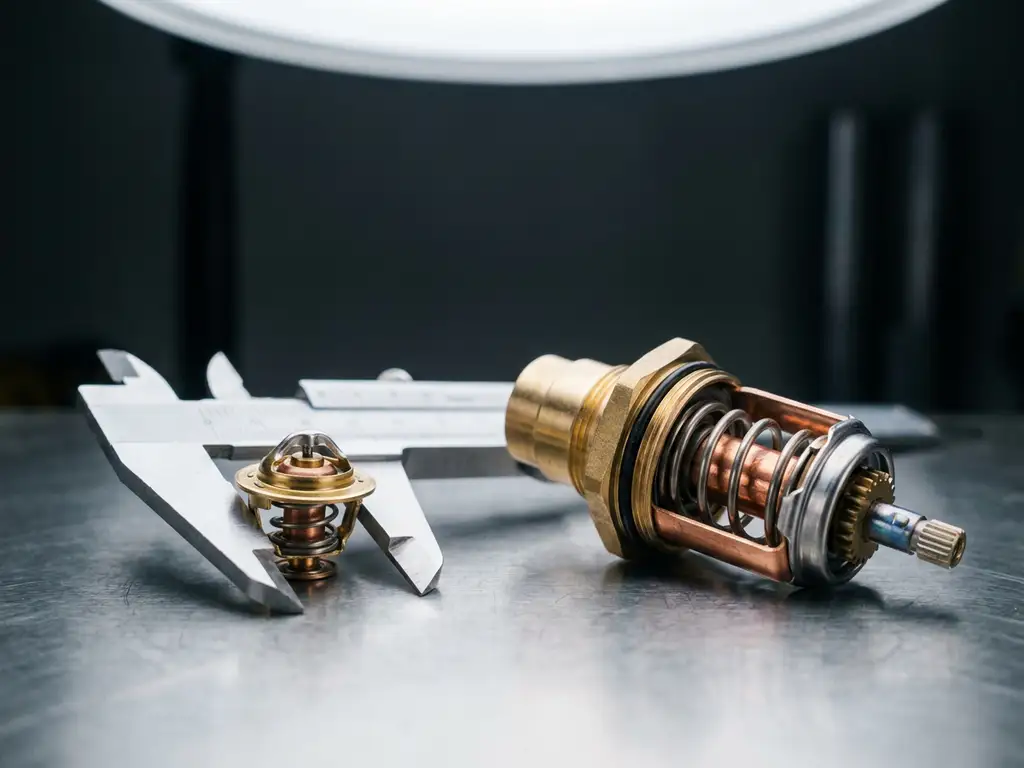

Miniaturized thermostat components differ from standard ones primarily in their physical dimensions, material tolerances, and the precision required during both manufacturing and integration. While a standard thermostat component might measure several centimeters across, miniaturized versions operate within tightly constrained spaces, often a fraction of that size, without sacrificing thermal accuracy or response speed. The differences go well beyond size alone, touching on everything from wax element formulation to housing geometry and application suitability. Below, we walk through the key questions engineers and procurement teams ask when evaluating compact thermostat technology against conventional alternatives.
What physical constraints define miniaturized thermostat components?
Miniaturized thermostat components are defined by strict dimensional boundaries that limit their external footprint while preserving full thermal functionality. They typically operate within housing volumes that are significantly smaller than standard components, requiring tighter manufacturing tolerances, reduced stroke lengths in wax elements, and more compact valve geometries. Every millimeter matters when space is constrained.
The physical constraints that shape miniaturized thermostat design include:
- Reduced housing diameter and length, which limits the volume of wax element material available to generate mechanical force
- Tighter dimensional tolerances on all moving parts, since even minor variation can cause disproportionate performance loss at small scales
- Compact valve seats and sealing surfaces, which must maintain leak-proof performance despite reduced contact area
- Miniaturized spring mechanisms, calibrated to deliver reliable opening and closing forces within a smaller mechanical envelope
These constraints mean that miniaturized thermostat components cannot simply be scaled-down versions of standard designs. Each element of the assembly needs to be re-engineered from the ground up to function reliably within its reduced form factor.
How do miniaturized thermostats perform compared to standard-sized ones?
In terms of thermal accuracy and response behavior, well-engineered miniaturized thermostat components can match the performance of standard-sized ones. The key difference lies in thermal mass: smaller components heat and cool faster, which can actually improve response times in dynamic systems. However, they may generate lower actuation forces, which limits their use in high-flow or high-pressure environments.
Performance comparisons between miniaturized and standard thermostat components typically come down to three factors:
- Response speed: Lower thermal mass means miniaturized components often react more quickly to temperature changes, which is advantageous in systems where fast regulation matters
- Actuation force: Standard components, with their larger wax volumes, produce greater mechanical force, making them better suited for applications requiring high valve lift or significant flow resistance
- Thermal precision: Both types can achieve high opening temperature accuracy when manufactured correctly, but miniaturized components demand tighter process control to maintain that precision at scale
For many modern applications, especially those in precision thermomanagement, the faster response of a miniaturized component outweighs the reduced actuation force, making it the better engineering choice despite its smaller size.
What applications specifically require miniaturized thermostat components?
Miniaturized thermostat components are specifically required in applications where installation space is tightly restricted but precise temperature control remains essential. Common examples include compact automotive cooling circuits, small-displacement engines, hybrid and electric vehicle thermal management systems, and space-constrained industrial or building technology assemblies.
Some of the clearest use cases include:
- Hybrid and electric vehicles: Battery thermal management systems and compact auxiliary heating circuits often have very limited space, yet demand highly accurate temperature regulation to protect sensitive components
- Small engine platforms: Motorcycles, marine outboards, and compact power units frequently use miniaturized thermostat components where a standard-sized unit simply would not fit
- Underfloor heating systems: Modern building technology, including radiant floor heating and compact radiator circuits, increasingly relies on small-format thermostat components that integrate cleanly into tight manifold assemblies
- Industrial control systems: Precision machinery and process equipment sometimes require localized temperature management in areas where larger components cannot be accommodated
What these applications share is a combination of spatial restriction and performance expectation. They cannot accommodate a larger component, yet they cannot afford to compromise on thermal accuracy either.
What manufacturing challenges come with miniaturized thermostat production?
Manufacturing miniaturized thermostat components introduces significantly greater complexity than producing standard-sized equivalents. The core challenge is that the same level of thermal precision must be achieved within a much smaller physical structure, leaving almost no margin for dimensional variation, material inconsistency, or assembly error.
Key manufacturing challenges include:
- Wax element formulation at small volumes: The thermally sensitive wax that drives actuation must be precisely compounded and filled in very small quantities, where even minor batch variation can shift the opening temperature outside acceptable limits
- Precision machining and tooling: Housing components, valve seats, and spring retainers require machining tolerances that push conventional equipment to its limits
- Assembly consistency: At miniaturized scales, manual handling variation becomes a more significant source of defects, driving the need for highly controlled or automated assembly processes
- Testing and validation: Standard functional test rigs often need to be adapted or purpose-built to accurately evaluate miniaturized components under realistic operating conditions
These challenges are why not every thermostat manufacturer can reliably produce miniaturized components. It requires a combination of specialized tooling, refined process control, and deep material knowledge that takes years to develop.
When should engineers choose miniaturized over standard thermostat components?
Engineers should choose miniaturized thermostat components when spatial constraints are non-negotiable and the application does not require the high actuation forces that only larger wax volumes can deliver. If a design has a defined installation envelope that a standard component cannot fit, and the flow rates and pressures involved are within the performance range of a compact unit, miniaturized is the right choice.
A few practical decision criteria help clarify when to go miniaturized:
- Installation space: If the available space clearly rules out a standard component, the choice is made for you. Miniaturized components exist precisely for these situations.
- Flow and pressure requirements: If the system operates at moderate flow rates and pressures that a compact valve can manage, miniaturized components perform reliably. High-flow systems may still need standard components for their greater actuation force.
- Response time sensitivity: In systems where fast thermal response is a priority, the lower thermal mass of a miniaturized component is actually an advantage worth seeking out.
- System integration complexity: Miniaturized components often simplify integration in densely packaged assemblies, reducing the need for additional fittings or routing workarounds.
When in doubt, the best approach is to evaluate both options against the specific thermal and mechanical requirements of the application rather than defaulting to a standard component simply out of familiarity.
How BTT Solutions supports your thermostat component selection
Choosing between miniaturized and standard thermostat components is rarely straightforward, and getting it wrong can affect system performance, reliability, and long-term costs. That is where we come in. At BTT Solutions, we work directly with engineers, procurement leads, and product developers to identify the right thermostat component for each specific application, whether that means a compact miniaturized unit or a full-sized standard component.
Here is what our component advisory service covers:
- Application analysis: We review your installation space, flow requirements, operating temperatures, and pressure conditions to define which component type is appropriate
- Product matching: Our range includes wax elements, thermostat inserts, and engineered housings, all designed for precision and reliability across automotive, industrial, and building technology applications
- Technical consultation: Our engineering team provides hands-on guidance throughout the selection process, helping you avoid common specification errors before they reach production
- Custom solutions: Where standard catalogue products do not fully meet your requirements, we develop tailored components that fit your exact design constraints
If you are working on a project that requires precise thermomanagement components and want expert input on whether miniaturized or standard thermostat components are the better fit, we would love to hear from you. Get in touch with our team and let us help you find the right solution.
