Thermostat hysteresis is the difference in temperature between when a thermostat opens and when it closes again. Rather than switching at a single fixed point, a thermostat responds at slightly different temperatures depending on whether it is heating up or cooling down. This built-in gap is intentional and essential for stable, reliable temperature control across automotive, industrial, and building applications.
Understanding hysteresis matters because it directly shapes how thermostats behave under real operating conditions and how their performance is measured during testing. The sections below unpack the mechanics, testing standards, acceptable tolerances, and practical consequences of hysteresis in depth.
How does hysteresis actually work inside a thermostat?
Hysteresis in a thermostat occurs because the wax element at its core expands and contracts at slightly different rates depending on the direction of temperature change. When the element heats up, it reaches its opening point at one temperature. When it cools, it does not close again until the temperature drops a few degrees lower. This difference between the opening and closing temperatures is the hysteresis band.
The wax element is the engine behind this behavior. As temperature rises, the wax melts and expands, pushing a piston that opens the valve. When temperature falls, the wax solidifies and contracts, allowing a return spring to close the valve. The mechanical friction within the assembly, the thermal mass of the wax, and the spring tension all contribute to the gap between these two switching points.
This is not a flaw in the design. A thermostat that opened and closed at exactly the same temperature would oscillate rapidly, causing wear and instability. The hysteresis band acts as a buffer that prevents this rapid cycling and keeps the system in a stable operating range. The size of that band, however, needs to be carefully controlled. Thermostat components designed for precision applications are engineered so that this band stays consistent across production batches and operating lifetimes.
Why does hysteresis cause variation in thermostat test results?

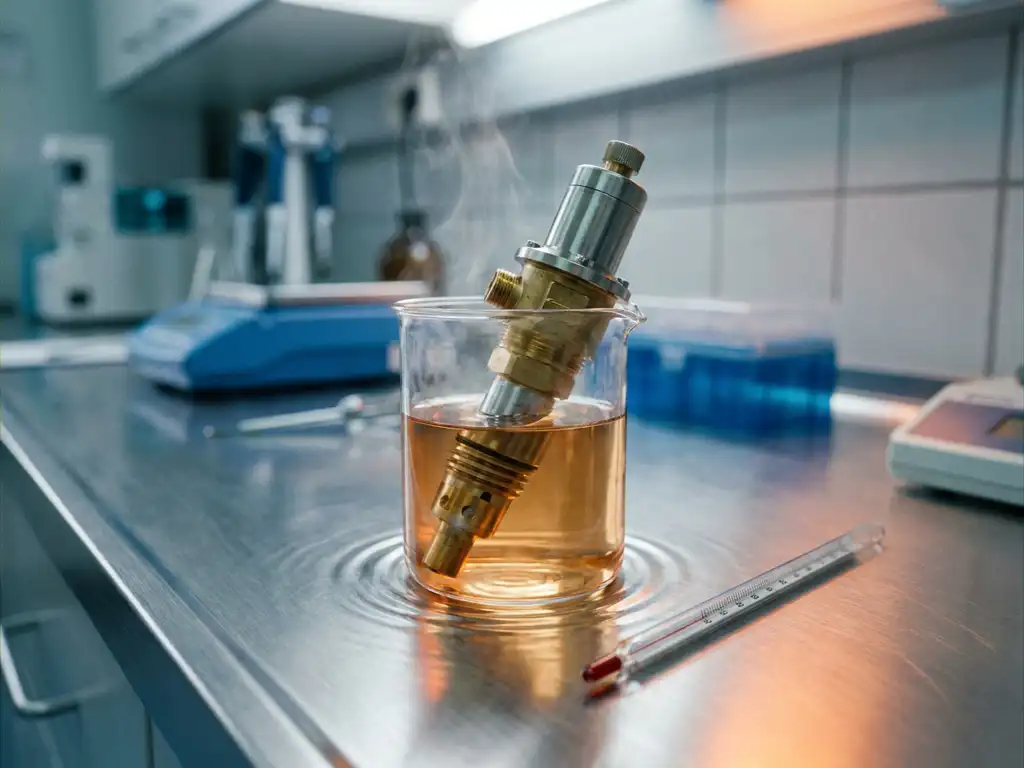

Variation in thermostat test results caused by hysteresis comes from the fact that the measured opening and closing temperatures depend on how the test is conducted. The rate at which the test medium heats or cools, the direction of temperature change during measurement, and the thermal mass of the test setup all influence where the thermostat appears to switch. Two identical thermostats tested under slightly different conditions can produce noticeably different readings.
This is why standardized test protocols specify not just target temperatures but also heating and cooling rates. If a test heats the medium too quickly, the wax element may lag behind the surrounding fluid temperature, causing the thermostat to appear to open later than it actually would under steady operating conditions. Conversely, a very slow test rate may produce a narrower apparent hysteresis band than would occur in real use.
For engineers evaluating thermomanagement components, this means test results should always be interpreted in the context of the test method. A result that looks like a tolerance failure may simply reflect a mismatch between test conditions and the component’s design parameters.
What are the accepted industry standards for measuring thermostat hysteresis?
The primary international standard for thermostat testing is ISO 9645, which defines procedures for measuring opening temperature, lift, and hysteresis in engine cooling thermostats. It specifies the heating rate of the test medium, the method for determining the opening and closing points, and the conditions under which measurements are recorded. Many automotive OEMs also maintain their own internal specifications that reference or build upon ISO 9645.
In practice, most automotive thermostat tests measure the temperature at which the valve reaches a defined lift (typically 0.1 mm) as the medium heats up, and the temperature at which it returns to that same lift as the medium cools. The difference between these two temperatures is recorded as the hysteresis value. Some test protocols also measure full-open temperature and full-close temperature as additional data points.
For industrial and building applications, relevant standards vary by sector. Heating system components may be tested according to EN standards applicable to radiator valves or underfloor heating controls. The underlying measurement principle remains the same: capture the switching behavior in both directions and record the gap between them.
How much hysteresis is acceptable in automotive and industrial thermostats?
For automotive engine cooling thermostats, a hysteresis band of roughly 2°C to 8°C is generally considered acceptable depending on the application and OEM specification. Tighter tolerances are required for modern engines with precise thermal management strategies, where a wider hysteresis band could interfere with emissions control or fuel efficiency targets. Industrial thermostats may tolerate wider bands where precise temperature control is less critical.
The acceptable range depends on several factors. High-performance engines and hybrid powertrains increasingly demand thermostats with very consistent opening temperatures and narrow hysteresis bands because the engine control unit relies on predictable thermal behavior to optimize combustion and emissions. A thermostat that opens several degrees earlier or later than expected disrupts these calculations.
In contrast, a thermostat used in a building heating radiator operates in a less time-sensitive environment. A wider hysteresis band may actually be desirable there to prevent the valve from cycling too frequently in response to small temperature fluctuations in the room. The acceptable range is always defined relative to the demands of the specific application, not as a universal number.
What causes abnormal hysteresis readings during thermostat testing?
Abnormal hysteresis readings during thermostat testing are most commonly caused by contamination of the wax element, mechanical wear in the valve assembly, incorrect test medium temperature, or inconsistent heating and cooling rates during the test itself. Distinguishing between a genuine component defect and a test setup issue is a critical first step in any quality investigation.
Component-side causes
On the component side, wax contamination is a leading cause of erratic hysteresis behavior. If foreign particles enter the wax compound during manufacture or through exposure to contaminated coolant in service, the melting and solidification behavior of the wax changes unpredictably. This shows up as inconsistent opening temperatures across repeated test cycles or a hysteresis band that widens or narrows from one measurement to the next.
Mechanical wear in the piston or sleeve can also alter hysteresis by changing the friction forces that the return spring must overcome. A worn or corroded piston may stick at certain positions, creating a larger apparent hysteresis band than the wax element alone would produce.
Test setup causes
On the test side, a non-uniform temperature distribution in the test bath means the thermostat body may not be at the same temperature as the sensor reading the bath temperature. This creates a systematic offset that appears as a shift in both opening and closing temperatures and can artificially inflate or compress the measured hysteresis band.
Heating and cooling rates that deviate from the standard also produce misleading results. A test bath that heats too quickly does not allow the wax element to reach thermal equilibrium with the surrounding fluid, making the thermostat appear to open at a higher temperature than it actually would under real operating conditions.
How does hysteresis affect engine efficiency and emissions in practice?
In practice, thermostat hysteresis affects engine efficiency and emissions by determining how long the engine operates outside its optimal temperature window. A thermostat with a well-controlled hysteresis band keeps coolant temperature stable within a narrow range, allowing the engine management system to maintain precise control over combustion, fuel injection, and exhaust aftertreatment. A thermostat with excessive hysteresis allows wider temperature swings that reduce this precision.
When an engine runs cooler than its target temperature because a thermostat is slow to close, fuel does not atomize and combust as efficiently. This increases fuel consumption and raises hydrocarbon emissions. Modern emissions regulations in 2026 place strict limits on these outputs, making thermostat performance a direct factor in regulatory compliance for vehicle manufacturers.
On the other side of the hysteresis band, an engine that runs hotter than intended because a thermostat is slow to open risks increased NOx emissions and thermal stress on engine components. The hysteresis band effectively sets the temperature corridor the engine operates in during normal operation. Keeping that corridor narrow and consistent is one of the most straightforward ways to support both fuel efficiency and emissions targets without changes to the engine itself.
This connection between temperature control precision and real-world performance is why engineers treat hysteresis as a critical quality parameter rather than a secondary specification. A thermostat that passes its opening temperature test but shows excessive hysteresis may still underperform in service.
How BTT Solutions supports precise thermostat hysteresis control
We work directly with automotive, industrial, and building technology customers to ensure that hysteresis is treated as a first-class design and quality parameter, not an afterthought. Our component advisory service helps customers select the right thermostat configuration for their specific thermal management requirements, including guidance on acceptable hysteresis tolerances for their application.
Here is what we offer in practice:
- Component selection guidance for wax elements, thermostat inserts, and engineered housings, with hysteresis tolerances matched to your application demands
- Precision manufacturing designed to keep hysteresis bands consistent across production batches, reducing variation in your assembly or system performance
- Application-specific support for automotive OEMs, industrial system integrators, and building technology specialists who need reliable temperature control in demanding environments
- End-to-end thermomanagement solutions that address not just the thermostat component but the broader thermal system context it operates in
Whether you are specifying components for a new vehicle platform, an industrial cooling circuit, or a building heating system, we bring the technical depth to help you get the hysteresis specification right from the start. Get in touch with our team to discuss your requirements and find the right solution for your application.
