A single-pole thermostat component switches only one side of a circuit, leaving the other conductor permanently live. A double-pole thermostat component disconnects both conductors simultaneously, cutting all power to the load. The practical difference comes down to safety: single-pole designs are common in low-voltage control circuits, while double-pole configurations are required wherever full isolation is necessary. The sections below walk through the mechanics, wiring implications, and application choices in detail.
How does a single-pole thermostat component actually switch circuits?
A single-pole thermostat component controls the circuit by opening or closing a single electrical contact. When the measured temperature crosses the set threshold, the switching element moves and either completes or breaks one conductor in the circuit. The load side loses its path to power, but the neutral or return conductor remains connected at all times.
In practice, this means the heating or cooling element is controlled through one live wire. The thermostat acts as a gatekeeper on that single path. When the contact closes, current flows and the load activates. When it opens, current stops and the load switches off. This is sometimes described as a Single Pole Single Throw (SPST) configuration, where one input and one output share a single switching action.
Because only one conductor is interrupted, the wiring is straightforward, and the component itself can be compact and cost-effective. This simplicity makes single-pole thermostat components a natural fit for low-voltage control applications where one switched wire is sufficient to manage the load safely.
What does a double-pole thermostat component disconnect that a single-pole doesn’t?
A double-pole thermostat component simultaneously disconnects both the live and neutral conductors when it switches. Where a single-pole design breaks only one side of the circuit, a double-pole configuration provides complete electrical isolation by opening two contacts at the same time. This means no voltage remains present at the load terminals after switching.
This distinction matters significantly in higher-voltage environments. With a single-pole design, even when the circuit appears off, the neutral conductor and any associated wiring still carry potential. A double-pole thermostat eliminates that risk entirely. It is often referred to as a Double Pole Single Throw (DPST) configuration, where two separate contacts operate in unison from a single actuating mechanism.
For maintenance personnel, equipment designers, and safety-conscious engineers, this full disconnection is not just a convenience. In many industrial and commercial electrical standards, it is a requirement whenever a device operates above a specified voltage threshold or when personnel may need to service equipment without removing it from its installation.
When should a double-pole thermostat be used instead of a single-pole?
A double-pole thermostat should be used whenever the application requires full electrical isolation, operates at line voltage (typically 120V or 240V AC), or involves equipment that personnel may need to work on while it remains installed. Single-pole switching is generally acceptable only in low-voltage control circuits where one broken conductor is sufficient to stop current flow safely.
Specific situations that call for a double-pole configuration include:
- 240V heating systems such as electric baseboard heaters, radiant floor heating, and industrial process heaters, where both live conductors must be disconnected
- Industrial machinery where thermal protection circuits must fully isolate equipment before maintenance access is granted
- Marine and shipboard systems, where moisture and vibration increase the risk of fault conditions and full isolation is a safety baseline
- Building HVAC equipment connected directly to mains voltage, where local electrical codes require double-pole switching
- Any application governed by IEC or NEC standards that mandate full disconnection at the point of control
If the system runs on 24V control voltage feeding a separate relay or contactor, a single-pole thermostat component is often perfectly adequate. The key question is always whether breaking one conductor genuinely removes all hazardous voltage from the load.
How does the pole count affect thermostat wiring complexity?
The pole count directly determines how many conductors the thermostat must be wired into. A single-pole thermostat requires only one switched conductor in addition to any control or sensor wiring. A double-pole thermostat requires two switched conductors, which means more terminals, heavier wiring runs in some cases, and additional care during installation to ensure both poles are correctly assigned.
For single-pole thermostat wiring, the installer typically connects the incoming live wire to one terminal and the outgoing wire to the load on the other. The neutral passes through without interruption. This is fast to wire and easy to troubleshoot.
Double-pole thermostat wiring adds a second switched path. Both the live and neutral (or in some systems, both live conductors of a split-phase supply) must be routed through the thermostat housing. Terminal blocks are larger, the component itself is physically bigger, and the installer must verify that both poles are correctly aligned with the supply conductors. Mistakes in double-pole wiring can result in only one pole switching, which defeats the purpose of the configuration entirely.
From a design standpoint, the increased wiring complexity of a double-pole setup is a worthwhile trade-off when safety or regulatory requirements demand it. For thermostat components used in industrial thermomanagement, this added complexity is typically managed through standardized connector housings and clearly labeled terminal layouts.
What are the performance trade-offs between single-pole and double-pole thermostat components?
Single-pole thermostat components tend to be smaller, lighter, and less expensive than their double-pole counterparts. They have fewer mechanical parts involved in the switching action, which can translate to faster response times and a simpler failure mode profile. Double-pole components carry a modest increase in size and cost, but they offer superior safety margins and are more suitable for demanding environments.
From a switching performance perspective, both configurations can achieve similar levels of precision in temperature control. The pole count does not inherently affect how accurately the thermostat reads temperature or how tightly it holds a setpoint. What it does affect is the electrical behavior at the moment of switching:
- Arc suppression: Double-pole switching distributes the arc energy across two contact pairs, which can reduce wear on each individual contact under high-load conditions
- Contact load rating: Each pole in a double-pole design typically carries half the total current, which can extend contact life in high-current applications
- Fail-safe behavior: If one pole fails to open, a double-pole thermostat still interrupts one conductor, whereas a single-pole failure leaves the full circuit intact
For thermomanagement components operating in automotive or industrial environments, the choice between single-pole and double-pole often comes down to the current rating, the voltage class, and the required service life under thermal cycling stress.
Which thermostat pole configuration is right for automotive versus industrial applications?
Automotive applications almost exclusively use single-pole thermostat components because vehicle electrical systems operate at 12V or 48V DC, where full double-pole isolation is not required for safety. Industrial applications more frequently demand double-pole configurations because they involve mains-voltage equipment, higher current loads, and stricter safety standards that require complete circuit isolation.

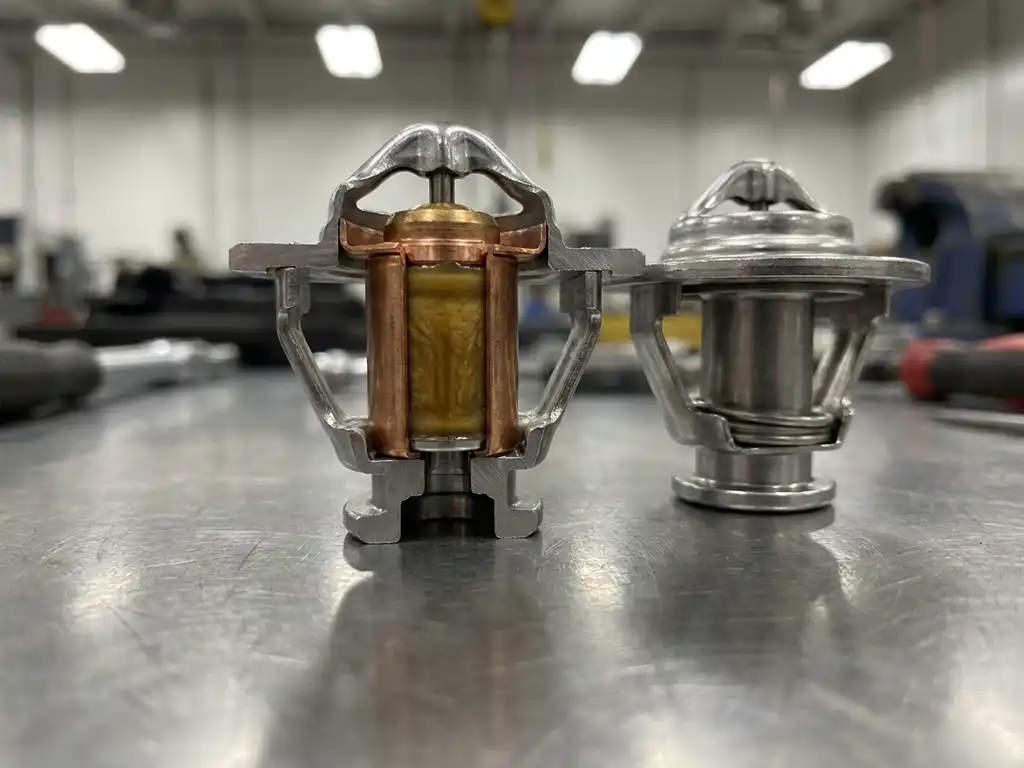

In automotive thermomanagement, the thermostat’s primary role is to regulate coolant flow and manage engine temperature within a precise operating range. The switching element controls a low-voltage signal or directly manages a wax element that opens and closes coolant passages. The electrical risk at these voltages is low, and single-pole switching is entirely appropriate. Precision and response speed matter far more than pole count in this context.
Industrial applications tell a different story. Process heating, cooling systems, and temperature-controlled machinery often run at 230V or 400V AC. Here, double-pole thermostat switching is frequently mandated by safety regulations. The same logic applies to building technology applications such as radiant floor heating systems and wall-mounted heaters, where the thermostat sits directly in a mains-voltage circuit.
Marine and off-highway vehicle applications sit somewhere in between. They may use 24V or 48V systems where single-pole is technically sufficient, but the harsh operating environment and the consequences of electrical faults often push designers toward double-pole configurations as a conservative safety margin.
How BTT Solutions supports your thermostat component selection
Choosing between a single-pole and double-pole thermostat configuration is rarely just a theoretical question. It involves understanding the voltage class, current rating, installation environment, and applicable safety standards for your specific application. That is exactly where we can help.
At BTT Solutions, we advise customers across automotive, industrial, and building technology sectors on selecting the right thermostat components for their needs. Our product advisory service covers:
- Wax elements and thermostat inserts matched to your switching requirements and thermal response targets
- Engineered housings designed for both single-pole and double-pole configurations in demanding environments
- Application-specific guidance for coolant regulation, oil temperature management, heating systems, and industrial process control
- Support for customers who need components that meet international safety and performance standards
Whether you are sourcing components for a new platform or re-evaluating an existing design, we bring deep expertise in precision thermomanagement to every conversation. Get in touch with our team to discuss your application and find the right thermostat configuration for your requirements.
